    Capacitive Touch Panel 2.8 Inch IPS TFT LCD Display 240x320 For Industrial Control

    Ask Lasest Price
    Brand Name : Jingtai
    Model Number : JT-2.8IPS
    Certification : ISO9001 / ISO14000
    Price : 1-20
    Payment Terms : T/T,L/C,D/A,D/P,Western Union,MoneyGram
    Supply Ability : 2000K pcs per month
    Delivery Time : 1-5 weeks
    • Product Details
    • Company Profile

    Capacitive Touch Panel 2.8 Inch IPS TFT LCD Display 240x320 For Industrial Control

    2.8 Inch TFT IPS LCD Display Screen
    High-performance 2.8" IPS LCD display with excellent visibility and wide temperature range operation.
    Key Features
    • High-quality IPS panel with full viewing angle
    • Multiple brightness options: 250cd/m², 500cd/m², 700cd/m²
    • Versatile interface support: MCU, SPI, RGB
    • Capacitive touch panel (CTP) with I2C interface
    • Compact module size: 48.7*68.85*2.07mm
    Technical Specifications
    AttributeValue
    Resolution240*320 pixels
    Display ModeIPS Full Viewing Angle
    Luminance250cd/m² (Typ), 500cd/m² (Typ), 700cd/m² (Typ)
    InterfaceMCU/SPI/RGB
    Touch ScreenCTP (Capacitive Touch Panel)
    CTP InterfaceI2C
    CTP StructureGF/GFF
    Detailed Specifications
    ApplicationIndustrial Control
    Active Area43.2*57.6mm
    Aspect Ratio4:3
    Display ModeNormally Black
    Viewing Angle (CR>10)80/80/80/80 (Typ)
    Contrast Ratio1000 (MIN), 1200 (Typ)
    NTSC70% (Typ)
    Operating Temperature-30℃ to +80℃
    Storage Temperature-30℃ to +85℃
    Industrial Applications
    This high-performance 2.8" IPS LCD display is ideal for industrial control systems, offering excellent visibility, wide temperature range operation, and multiple interface options for seamless integration into various industrial applications.

    2.8-Inch TFT LCD Screen, 240×320 IPS Type, SPI/RGB/MCU Serial Interface LCD Module

    2.8-Inch TFT Screen


    DESCRIPTION

    The JT-2.8IPS is a 2.8-inch TFT-LCD module designed for portrait mode operation, featuring a resolution of 240 × 320 pixels. This LCD module incorporates the ST7789 driver IC and supports an SPI/MIPI/RGB/MCU interface. Its operating voltage (Vdd) ranges from 2.6V to 3.3V, with a typical value of 2.8V. The module has a 12 o’clock viewing direction and a contrast ratio 1000MIN, 1200 (Typ).

    With a typical brightness of 250 nits, the JT-2.8IPSTW is a portrait-mode TFT-LCD suited for various applications. It can operate at temperatures from -20 °C to +70 °C, while its storage temperature range is from -30 °C to +80 °C.

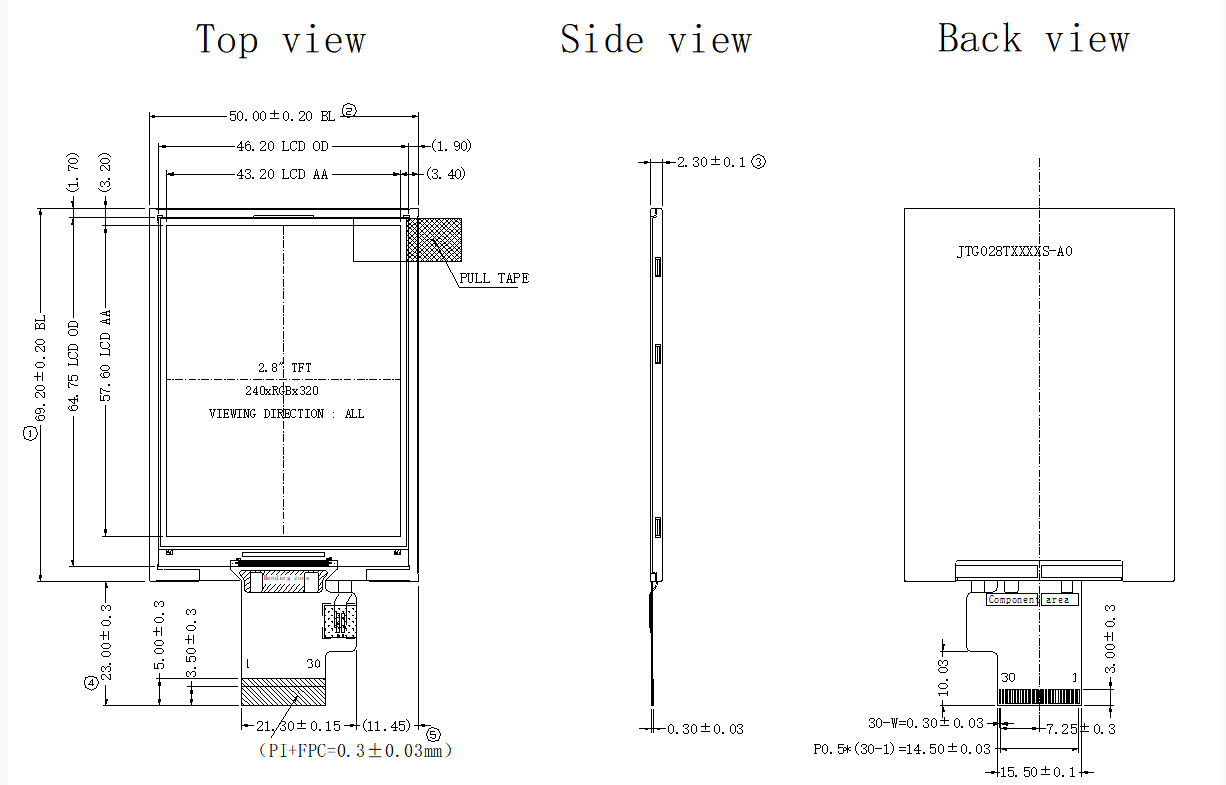

    2.8 inch IPS TFT Touch Display Module Drawing
